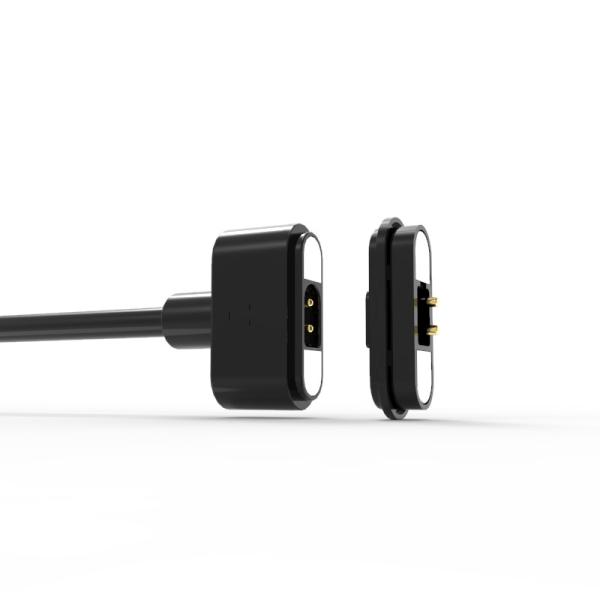

3A TPE material cable 2pin magnetic cable connector with 2.80mm pitch

...Material:
The metal needle part is plated with gold on the brass surface;
The hard plastic material is made of HTN+30%UL94 V-0 black, which can withstand high temperatures.

The magnet adopts high-performance permanent magnet neodymium iron boron;
Black TPE 80A outer mold of the joint;
Wire OD3.5mm 2C(red and black: 65*0.08)
Covered with black TPE
USB: stainless steel she11 USB2.0.

...Mechanical properties:
Spring force: 80g ± 20g at 1.0 working height,
Service life: 50,000times minimum.

...Electrical properties:
Reference voltage: 12 V,
Continuous working current: 3.0A;
Maximum momentary current: 4.0A maximum;
Contactstatic impedance of the needle:50mΩ Max (PIN).
The product adopts environmental protection materials, ROHS, REACH;
The adhesive force of the magnetic male and female docking is more than 550G.

Product Introduction and Dxplaination:
Product anti-short-circuit structure design;
Polarity and electrical direction are clearly identified.

2Pin Magnetic Cable Connectors Parameter:

2Pin Male Magnetic Cable Connector Drawing Size:

2Pin Female Magnetic Connector Drawing Size:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

2Pin Magnetic Cable Connector Application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
