    2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin

    Ask Lasest Price
    Brand Name : UPE
    Model Number : RM-1163-A01-13 /RM-1163-B02-61
    Certification : ISO9002
    Price : $1-$5
    Payment Terms : T/T
    Supply Ability : 5KPCS/Day
    Delivery Time : 12-15 working days
    • Product Details
    • Company Profile

    2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin

    2A rounded male female 2pin gold plating DC power pogo pin magnetic connector.


    UPE company is a professional manufacturer of magnetic connector,the magnetic connector is composed of Pogo Pin, Female Pin, Spring, Housing, Shell, Magnet.


    Materials & Construction:

    Pogo pin: BrassC6801 Plating Au 0.125um

    Turning Parts:Brass C3602 Plating Ni

    Spring:SUS 304Au;

    Housing: Black HTN+30%UL94 V-0 black, which can withstand high temperatures

    Metallic Shell: BrassC3602 Plating Ni
    PCB: Polyesterresinglassfiber
    Magnet: N52 NdFeB Plating Ni Cu Ni

    Mechanical:

    Spring force: 60g±20g,at 0.6mm working storke.

    Mechanical life: 10000 cycle Min..

    Adsorption capacityt est:The parent docking adsorption is 300g±20%


    Electrical:

    Voltage:12 V.

    Current: 2.0 A.

    Contact resistance:50mΩ Max (PIN) .


    Environmental performance:

    Operation Temperature:-25℃to +80℃

    SaltSpray: 24H

    ROHS or REACH compliant product.

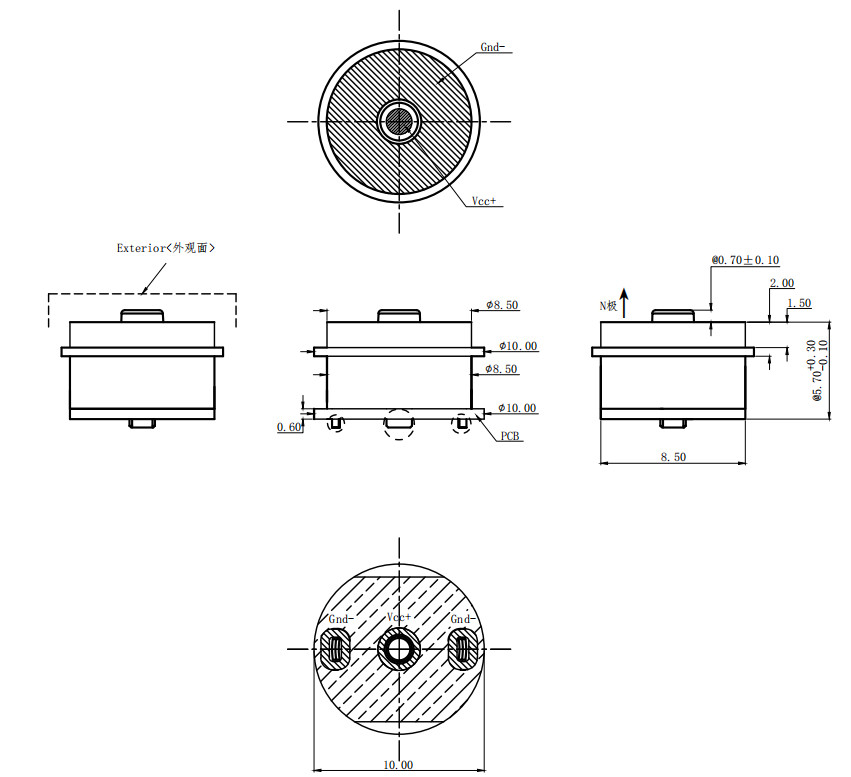

    Male Magnetic Connector Size:

    2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin

    Female Magnetic Connector Size:

    2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin


    Round Magnetic Connector Parameter:

    Name

    Round Magnetic Connector

    Diameter

    8.5mm

    Gender

    Male/Female

    Pin

    2pin

    Color

    Silver/Black

    Pogo pin

    Brass C6801

    Turning Parts

    Brass C3602 Plating Ni

    Spring

    SUS304

    Shell

    BrassC3602Plating Ni

    Magnet

    NdFeB N52 Plating Ni

    Housing

    Black HTN

    Spring force

    60g±20g

    Working stroke

    0.6mm

    Voltage

    12 V

    Current

    2.0A

    Contact resistance

    50mΩ Max (PIN).

    Salt spray test

    24H

    Certification

    ROHS or REACH compliant product

    Test

    100% open and short test


    Advantages of Magnetic Connector:

    ●Humanize design of automatic adsorption connection experience;

    ●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

    ●Life time: up to 100,000-200,000cycle;

    ●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

    ●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

    ●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

    ●Product anti-short circuit structure design and foolproof;

    ●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission


    Magnetic Connector Application:

    2A Round Magnetic Connector Gold Plating Magnetic Power Connector 2 Pin


    Why do customers choose us?

    1.Customization & Flexibility

    2.Fast Samples = Faster Time-to-Market

    3.Every connector undergoes rigorous quality checks

    4.Incoming Material Inspection

    5.In-Process Quality Checks

    6.100% Final Testing

    7.Traceability & Compliance

    8.Customer-Focused QC Flexibility


    How to place the magnetic cable connector order

    * You send us drawing or sample

    * We carry through project assessment

    * We make the sample and send it to you

    * You think the sample is good then place an order and pay us 30% deposit

    * We start to make the product

    * When the goods is done, we take photoes for your check and you then pay the balance

    * We deliver the products to courier company


    Payment Term: T/T,50% Deposit,50% Balance

    Payment method: T/T,PayPal,OCBC

    Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

    Production Lead Time:10-15Working day

    Made For: America,Europe,Asia,South African

    Trade Term: EXW

    Freight: Air,Sea,Express

    Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
