Customized diameter 18.0mm 2 pin round male & female magnetic connector.

Materil and coating conform to ROHS and REACH standards.

To ensure contact mechanica llife,NEVER compress pogo-pin OVER defined working stroke in drawing,which may damage the inside spring.

Mechanical:

-Contact force:300g±20g at 0.8mm working storke

-Life test:10,000cycle

Electrical:

-Rated voltage:DC12V;Rated voltage:6AMax.

-Contact resistance of spring pin:50milliohm Max.

Environmental performance:

-Operation Temperature:-25℃ to +80℃

SaltSpray:48H

Materials:

Pogo Pin: Brass C3604,Plating: Gold (Au) 0.5µm

Female Pin: materials,Plating: Gold (Au) 0.25µm

Housing: Black HTN (High-Temperature Nylon) + 30% filler

Copper: Brass C3604

Circular 2Pin Male Female Magnetic Connectors Parameter:

Circular 2Pin Magnetic Connector Technical Drawing

Circular 2Pin Female Magnetic Connector Technical Drawing

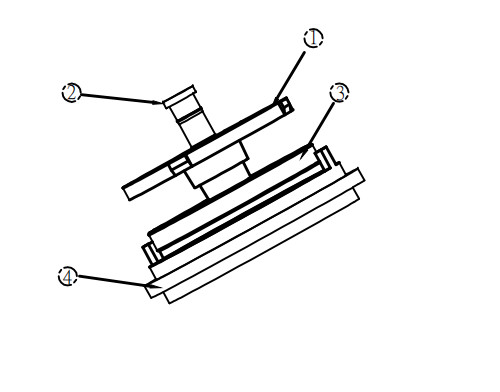

Decompose the view of female magnetic connector

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
