Diameter 8.0mm white round magnetic connector adapter for electronic device

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: White LCP+30%GFUL94 V-0 ;

Shell: Lead-free C6801Plating Ni

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:60g±10g,at 0.4mm working stroke.

Full storke:0.6mm.

Mechanical life:50000 cycle Min.

Electrical Specifications:
Rated Voltage: 12V DC.

Rated Current: 3.0A.

Contact Resistance: ≤50mΩ (milliohms) per pin.

Testing:

100% open/short circuit tested.

ROHS/REACH compliant (no hazardous substances).

Salt spray test: 48 hours (corrosion resistance validation).

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

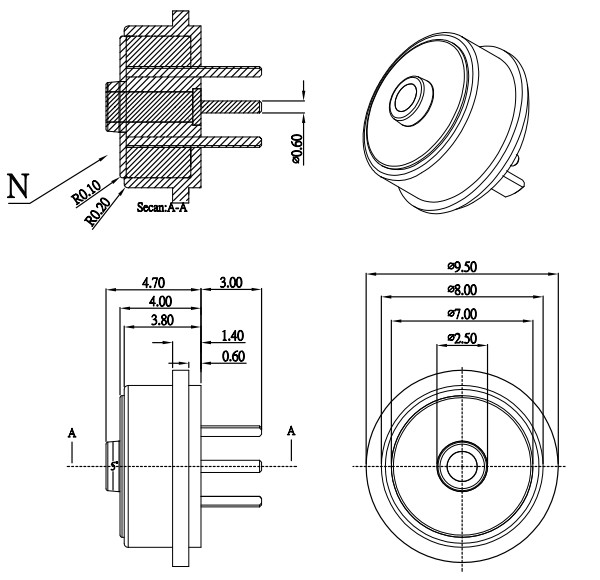

Round Male Magnetic Connector Technical Drawing

Round Female Magnetic Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Round Magnetic Connectors

1.Effortless Connection

Automatic adsorption enables quick, tool-free attachment; user-friendly operation.

2. Easy Removal

Magnetic interface allows seamless disconnection without physical strain.

3. High Durability

Supports 50,000–300,000 mating cycles for long-term reliability.

4. Robust Protection

Customizable IP68-rated waterproof and dustproof design (female end).

5. High-Current Support

Handles 3A–20A for fast charging and power-intensive applications.

6. Superior Corrosion Resistance

Withstands harsh environments (tested for 48–120 hours in salt spray).

7. Customizable Form Factor

Tailored shapes to match product aesthetics, enhancing market appeal.

8. Smart Orientation Detection

Magnet positioning + structural design ensure correct polarity and circuit protection.

9. Multifunctional Interface

Supports power, signal, video, audio, data (e.g., USB 2.0), and more.

10. Cost-Efficient Development

Short lead time and low mold costs for rapid customization.

11. High-Quality Signal Transmission

Reliable RF signal performance (e.g., compliant with USB 2.0 standards).

Magnetic connector products application:

1. Consumer Electronics
Smartphones & Tablets: Some devices use magnetic connectors for charging/data transfer.
Laptops: Magnetic power connectors

Wearables: Smartwatches and fitness bands use them for charging.

2. Audio Devices
Wireless Earbuds: Charging cases often have magnetic connectors for alignment.
Headsets: Some high-end headphones use magnetic charging ports.

3. Medical Devices
Hearing Aids: Magnetic charging for small, water-resistant designs.
Wearable Monitors: Secure connections for medical sensors.

4. Industrial & Automotive
Robotics: Quick-release power/data connections for modular systems.
EV Charging: Some prototypes use magnetic connectors for effortless docking.

5. Smart Home & IoT
Modular Lights/Fans: Easy-to-attach magnetic power links.
Security Cameras: Simplified charging for battery-powered models.

6. Military & Aerospace
Ruggedized magnetic connectors for quick-disconnect in harsh environments.
