High current 5A round male and female magnetic charging connector for humidifier

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black HTN+30%GFUL94 V-0 ;

Shell: Lead-free C6801Plating Ni

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:80g±20g,at 1.0mm working stroke.

Full storke:1.2mm.

Mechanical life:50000 cycle Min.

Electrical Specifications:
Rated Voltage: 12V DC.

Rated Current: 5.0A.

Contact Resistance: ≤50mΩ (milliohms) per pin.

Testing:

100% open/short circuit tested.

ROHS/REACH compliant (no hazardous substances).

Salt spray test: 48 hours (corrosion resistance validation).

Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

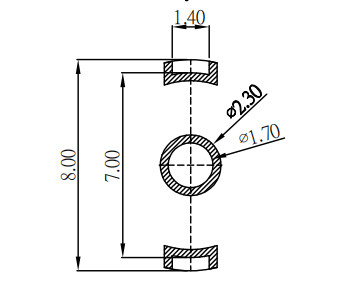

Round Male Magnetic Connector Technical Drawing

Round Female Magnetic Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Round Magnetic Connectors

1.Effortless Connection

Automatic adsorption enables quick, tool-free attachment; user-friendly operation.

2. Easy Removal

Magnetic interface allows seamless disconnection without physical strain.

3. High Durability

Supports 50,000–300,000 mating cycles for long-term reliability.

4. Robust Protection

Customizable IP68-rated waterproof and dustproof design (female end).

5. High-Current Support

Handles 3A–20A for fast charging and power-intensive applications.

6. Superior Corrosion Resistance

Withstands harsh environments (tested for 48–120 hours in salt spray).

7. Customizable Form Factor

Tailored shapes to match product aesthetics, enhancing market appeal.

8. Smart Orientation Detection

Magnet positioning + structural design ensure correct polarity and circuit protection.

9. Multifunctional Interface

Supports power, signal, video, audio, data (e.g., USB 2.0), and more.

10. Cost-Efficient Development

Short lead time and low mold costs for rapid customization.

11. High-Quality Signal Transmission

Reliable RF signal performance (e.g., compliant with USB 2.0 standards).

Round Magnetic connector products application:

Why UPE shall be your partner?

1. Fast Prototyping (3–5 Days for Samples)
●Speed-to-Market: Rapid sample turnaround accelerates product development cycles.

●Iterative Testing: Enables quick design refinements before mass production.

●Advantage: Ideal for industries like automotive, medical, or consumer electronics where time-sensitive innovation is critical.

2. Cost-Effective (Competitive MOQ Pricing)
●Low Minimum Order Quantities (MOQ): Reduces upfront costs for startups or small batches.

●Scalability: Flexible pricing ensures affordability for both prototyping and large-scale orders.

●Value Proposition: Balances high-quality output with budget-friendly solutions.

3. Quality Assurance (100% Automated Testing)
●Zero Defects: Automated inspection (e.g., optical, electrical, mechanical) ensures reliability.

●Consistency: Eliminates human error in critical testing (e.g., contact resistance, salt spray, cycle life).

●Compliance: Meets strict industry standards (ROHS, REACH, automotive-grade).

4. High-Tech Production & Precision Engineering
●Advanced Manufacturing: CNC machining, precision stamping, and micro-plating (e.g., Au/Ni for connectors).

●Material Expertise: Mastery of specialized materials (LCP, SUS 304, NdFeB magnets, lead-free brass).

●Application-Specific Solutions: Tailored for complex components

We can provide design service

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping

Any question, please send to union@upetech.net
