Diameter 6.0mm male and female round magnetic connector for portable charger

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black HTN+30%GFUL94 V-0 ;

Shell: Brass C3602 Plating Ni;

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:50g±10g,at 0.4mm working stroke.

Full storke:0.6mm.

Mechanical life:50000 cycle Min.

Electrical:

Voltage:12 V.

Current:3.0A.

Contact resistance:50mΩMax (PIN).

100% open and short test.

...ROHS or REACHcompliant product.

...Salt spray test:48 H.

...& Key inspection dimension .

…Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

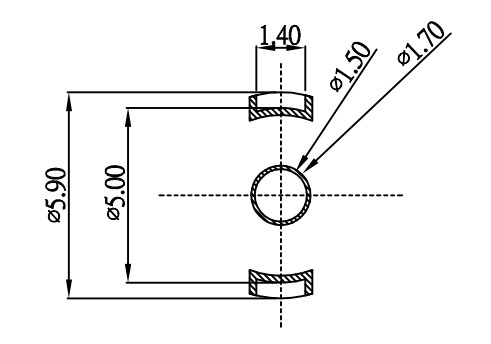

Round Male Magnetic Connector Technical Drawing

Round Female Magnetic Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

● Reliability and durability

● Rapid design and delivery

● Reliable and honest partnership

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
