    12V Round Magnetic Connector Female Male Magnetic DC Power Connector

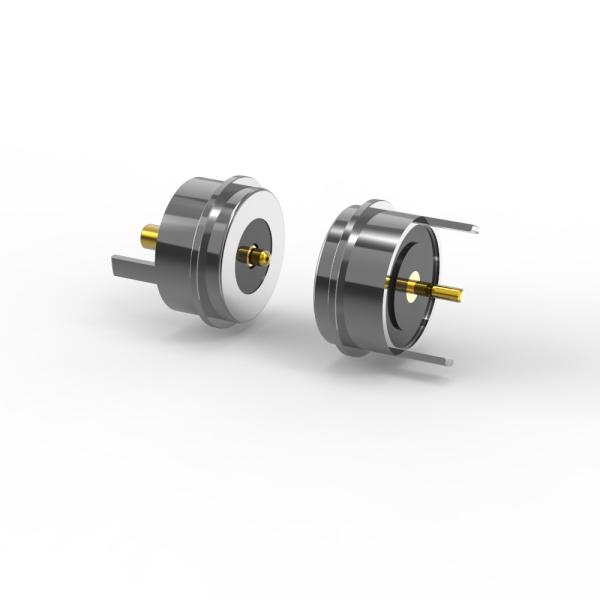

    Pogo pin magnetic round female male power charging DC magnetic connector.

    The round magnetic connector diameter is 8.0mm, and the housing is black.


    Materials:

    Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

    Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

    Spring:SUS 304 plating 1U" Au;

    Housing: Black HTN+30%GFUL94 V-0 ;

    Shell: Lead-free C6801Plating Ni

    Magnet: NdFeB N52 Plating Ni


    Mechanical:

    Spring Force: 80g ± 20g at 1.0mm working stroke.

    Ensures consistent contact pressure during operation.

    Full Stroke: 1.2mm (total travel distance of the plunger).

    Mechanical Life: 50,000 cycles minimum (durability requirement for repeated actuations).


    Electrical Specifications:
    Rated Voltage: 12V DC.

    Rated Current: 5.0A.

    Contact Resistance: ≤50mΩ (milliohms) per pin.


    Quality Assurance & Compliance Testing:

    1. Electrical Reliability
    100% Open/Short Circuit Tested: Every unit undergoes rigorous electrical validation to ensure flawless connectivity and safety.


    2. Environmental & Safety Compliance
    RoHS & REACH Certified: Free from hazardous substances (e.g., lead, cadmium), meeting EU and global environmental standards.


    3. Corrosion Resistance
    Salt Spray Tested (48 Hours): Validates performance in harsh, humid, or saline environments (e.g., marine, industrial use).


    Why Quality Assurance & Compliance Is Important?
    Zero Defects: Ensures every connector delivers consistent performance.
    Global Approval: Compliant with stringent international regulations.
    Durability Guaranteed: Corrosion-resistant for long-term reliability.


    The Benefits of Plating:

    Plating Quality: The thin Au over Ni ensures reliable electrical performance while minimizing cost (thicker Au would increase cost but may not be necessary for this application).

    Environmental Resistance: Ni plating on the shell/magnet and LCP housing provide protection against humidity, corrosion, and high temperatures.

    Durability: The 50,000-cycle life and spring force tolerance (±20g) indicate a focus on long-term reliability.


    Product application description(not limited to the following):

    1.Plug-in welding PCB board;

    2.Forming and encapsulating after welding wires;

    3.A transfer terminal of thatPCBboard can be adde;

    4.Mlding injection molding of embeddable mould;

    5. Wires can be bonded directly.


    Round Magnetic Connector Parameter:

    Name

    Round Magnetic Connector

    Diameter

    8.0mm

    Type

    Male/Female

    Pin

    2pin or customized

    Color

    Silver

    Pogo pin

    Lead-free C6801

    Spring

    SUS304

    Shell

    Lead-free C6801

    Magnet

    NdFeB N52 Plating Ni

    Housing

    Black HTN

    Spring force

    80g±20g

    Working stroke

    1.0mm

    Full storke

    1.2mm

    Voltage

    12 V

    Current

    5.0A

    Contact resistance

    50mΩ Max (PIN).

    Operation Temperature

    25℃to +80℃

    Salt spray test

    48H

    Certification

    ROHS or REACH compliant product

    Test

    100% open and short test


    Round Male Magnetic Connector Technical Drawing

    12V Round Magnetic Connector Female Male Magnetic DC Power Connector

    Round Female Magnetic Connector Technical Drawing

    12V Round Magnetic Connector Female Male Magnetic DC Power Connector


    Recommended pcb layout:

    12V Round Magnetic Connector Female Male Magnetic DC Power ConnectorLayout tolerance:±0.05mm


    Advantages of Round Magnetic Connectors


    1.Effortless Connection

    Automatic adsorption enables quick, tool-free attachment; user-friendly operation.


    2. Easy Removal

    Magnetic interface allows seamless disconnection without physical strain.


    3. High Durability

    Supports 50,000–300,000 mating cycles for long-term reliability.


    4. Robust Protection

    Customizable IP68-rated waterproof and dustproof design (female end).


    5. High-Current Support

    Handles 3A–20A for fast charging and power-intensive applications.


    6. Superior Corrosion Resistance

    Withstands harsh environments (tested for 48–120 hours in salt spray).


    7. Customizable Form Factor

    Tailored shapes to match product aesthetics, enhancing market appeal.


    8. Smart Orientation Detection

    Magnet positioning + structural design ensure correct polarity and circuit protection.


    9. Multifunctional Interface

    Supports power, signal, video, audio, data (e.g., USB 2.0), and more.


    10. Cost-Efficient Development

    Short lead time and low mold costs for rapid customization.


    11. High-Quality Signal Transmission

    Reliable RF signal performance (e.g., compliant with USB 2.0 standards).


    Round Magnetic connector products application:

    12V Round Magnetic Connector Female Male Magnetic DC Power Connector12V Round Magnetic Connector Female Male Magnetic DC Power Connector

    12V Round Magnetic Connector Female Male Magnetic DC Power Connector


    Why UPE shall be your partner?


    1. Fast Prototyping (3–5 Days for Samples)
    ●Speed-to-Market: Rapid sample turnaround accelerates product development cycles.

    ●Iterative Testing: Enables quick design refinements before mass production.

    ●Advantage: Ideal for industries like automotive, medical, or consumer electronics where time-sensitive innovation is critical.


    2. Cost-Effective (Competitive MOQ Pricing)
    ●Low Minimum Order Quantities (MOQ): Reduces upfront costs for startups or small batches.

    ●Scalability: Flexible pricing ensures affordability for both prototyping and large-scale orders.

    ●Value Proposition: Balances high-quality output with budget-friendly solutions.


    3. Quality Assurance (100% Automated Testing)
    ●Zero Defects: Automated inspection (e.g., optical, electrical, mechanical) ensures reliability.

    ●Consistency: Eliminates human error in critical testing (e.g., contact resistance, salt spray, cycle life).

    ●Compliance: Meets strict industry standards (ROHS, REACH, automotive-grade).


    4. High-Tech Production & Precision Engineering
    ●Advanced Manufacturing: CNC machining, precision stamping, and micro-plating (e.g., Au/Ni for connectors).

    ●Material Expertise: Mastery of specialized materials (LCP, SUS 304, NdFeB magnets, lead-free brass).

    ●Application-Specific Solutions: Tailored for complex components


    How to place the magnetic cable connector order
    * Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

    *Negotiate pricing & terms (bulk discounts may apply).

    *Confirm order details (connector type, quantity, customization).

    *Make payment (via PayPal, bank transfer, or other secure methods).

    *Shipping & Quality Check
    *Track the shipment.

    *Inspect the product upon arrival to ensure quality.


    Payment Term: T/T,50% Deposit,50% Balance

    Payment method: T/T,PayPal,OCBC

    Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

    Production Lead Time:10-15Working day

    Made For: America,Europe,Asia,South African

    Trade Term: EXW

    Freight: Air,Sea,Express

    Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
