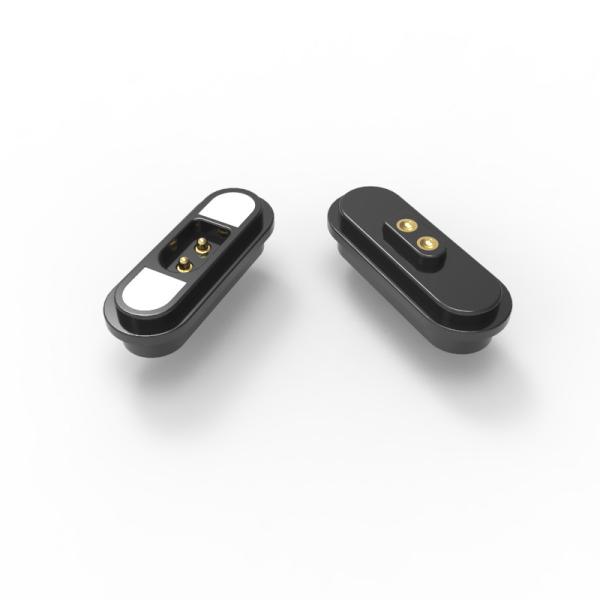

    DIP Magnetic Connector 2 Pin Customized Magnetic Pogo Pin Connectors 3A

    Ask Lasest Price
    Brand Name : UPE
    Model Number : VIC0250A / VIC0250B
    Certification : ISO9002
    Price : $1-$5
    Payment Terms : T/T
    Supply Ability : 5KPCS/Day
    Delivery Time : 12-15 working days
    • Product Details
    • Company Profile

    DIP Magnetic Connector 2 Pin Customized Magnetic Pogo Pin Connectors 3A

    3A DIP 2pin male and female contact magnetic pogo pin connector


    The 2pin magnetic pogo pin connector plastic material is HTN+30% UL94 V-0 black,which can withstand high temperatures. magnetic connector magnet adopts high-performance permanent magnet neodymium iron boron, the magnetic spring loaded connector magnet can be coated with epoxy resin, and the salt spray
    test can pass 48hours.)


    We also have standard 2 pin, 3pin , 4pin ,5pin,6pin, 7pin, 8pin, 9pin magnetic pogo pin connectors solutions customers to choose and can be OEM/ODM for our customers from all over all the world.


    2pin magnetic connectors parameter:

    Name

    Magnetic connectors

    Type

    DIP

    Pin

    2pin or customized

    Pitch

    2.80mm

    Pogo pin

    Brass

    Housing

    Black HTN+30%GF UL94 V-0

    Magnet

    Neodymium iron boron

    Magnet grade

    N52(As requirement)

    Magetic force

    600G

    Spring force

    8020g,at 1.0mm working storke.

    Mechanical life

    50000 cycle Min..

    Current

    5A

    Voltage

    DC 12V

    Contact resistance

    50mΩ Max (PIN).

    High voltage test

    AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.

    Salt spray test

    48H

    Certification

    ROHS or REACH compliant product

    Test

    100% open and short test


    2pin male DIP magnetic connectors:

    DIP Magnetic Connector 2 Pin Customized Magnetic Pogo Pin Connectors 3A


    2pin female DIP magnetic connectors:

    DIP Magnetic Connector 2 Pin Customized Magnetic Pogo Pin Connectors 3A

    Advantages of Magnetic Connector:


    1)Automatic adsorption connected experience; Easy operation;

    2)Uses a magnetic interface to remove the device easier.

    3)High life cycle. It supports 50,000-300,000 reattachment life times;

    4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

    5)Support a high current (3A-20A), faster recharge;

    6)Excellent corrosion rating (48H-120H) meet the harsh environments;

    8)Shape customized to meet with product shape matching, improve product selling point;

    9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

    the direction( It is user-oriented and user-friendly)

    10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

    11)Development time is short, low-cost mold for customization;

    12)Provide a reliable high RF signal transmission. Our connector is USB 2.0


    Why do customers choose UPE?


    1. Professional customization service

    2. Fast sample production capability

    3. Strict quality control system

    4. Processing with imported components

    5. High-precision test equipment

    6. Reasonable cost control procedures

    7. Product environmental standards


    Magnetic connectors application:

    DIP Magnetic Connector 2 Pin Customized Magnetic Pogo Pin Connectors 3A


    How to place the order
    * You send us drawing or sample

    * Our professional engineering team conducts the assessment

    * You confrim the drawing and we make the sample to send you

    * You test the sample and approved,then place an order and pay 50% deposit

    * We start to make the product

    * When the goods is done, we take photoes for your check and you then pay the balance

    * We deliver the products to you with DHL, TNT,UPS,Fedex


    Payment Term: T/T,50% Deposit,50% Balance

    Payment method: T/T,PayPal,OCBC

    Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

    Production Lead Time:10-15Working day

    Made For: America,Europe,Asia,South African

    Trade Term: EXW

    Freight: Air,Sea,Express

    Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
