50000 cycles life test circular magnetic wire connectors with 2 pin magnetic connector

Magnetic cable connector all materials complies RoHS & REACH Compliance.

All the magnetic cable connector passed 100% Short & Open Circuit Testin.

Mechanical:

-Contact force:160g±20g at 0.7mm working storke

-Life test:50,000cycle

Electrical:

-Rated voltage:DC48V;Rated voltage:5AMax.

-Contact Resistance: ≤ 50mΩ (milliohms) per pin (maximum)

Environmental performance:

-Operation Temperature: -25℃ to +80℃

-Environmental Test: Salt Spray 24 hours,

Over molding:PVC Black

Inner mold material: PE Transparent

Wire: 20AWG 2C

Magnet Plug: Magnetic Male Plug

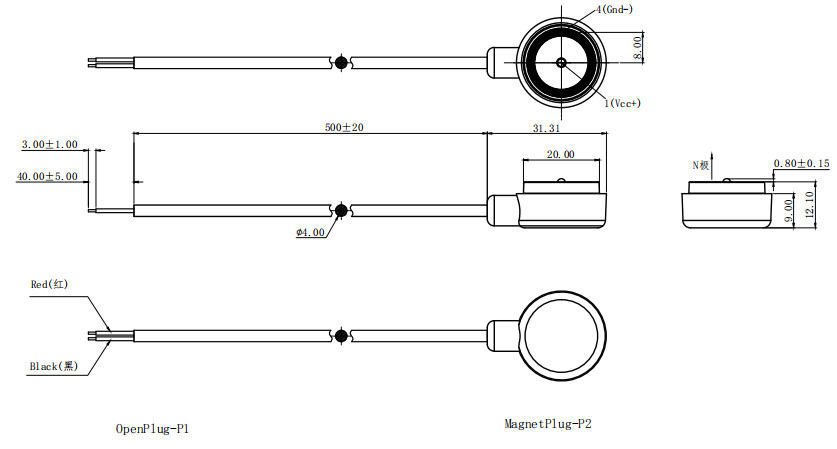

2Pin Male Magnetic Cable Connectors Parameter:

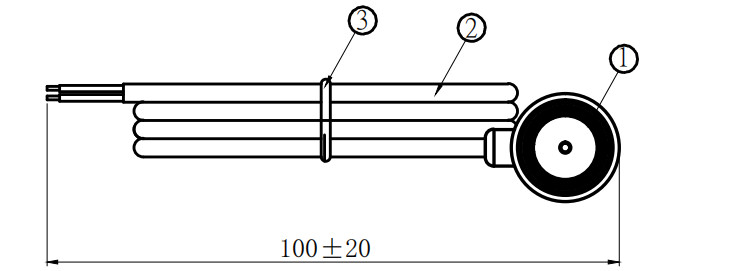

Circular Magnetic Cable Connector Technical Drawing

DC Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

Why UPE shall be your partner?

1.Specialized Expertise in Magnetic Connectors

●Focused R&D: UPE has dedicated experience in magnetic connectors

●Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs.

2. High Durability & Compliance

●10,000+ Cycles Guaranteed: Their connectors likely undergo rigorous testing to meet your mechanical life demand.

●Certifications: Compliant with UL, or RoHS standards—critical for consumer/medical markets.

3. Competitive Manufacturing

●Cost-Effective Tooling: UPE may offer low MOQs (e.g., 1K–5K units) with competitive pricing for small-to-medium batches.

●Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability.

4. Fast Prototyping & Support

●3D Samples in Days: Rapid prototyping for fit/function checks

●Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68).

How to Place Your Magnetic Cable Connector Order with UPE

1. Submit Your Requirements

Contact our sales team via:

Email: [union@upetech.net]

Phone: [+86 13434524996]

Online Form: [www.pogopinsconnector.com]

Provide details:

✔ Application (e.g., medical, automotive, consumer electronics)

✔ Connector type (e.g., magnetic pogo pin, charging cable)

✔ Specifications (voltage, current, size, waterproof rating, etc.)

✔ Quantity & lead time

2. Get a Custom Solution (If Needed)

Our engineers will review your needs and propose a custom design (if required).

We’ll share 3D models, samples, or technical drawings for approval.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
