400g magnetic force 2A charging magnetic connector spring 2Pin power pogo pin.

ROHS and REACH compliant for all materials and coatings for the magnetic connecor.

Materials:

Pogo pin: Brass C6801 Plating Au 0.125um

Turning Parts: Brass Plating Au 0.125um

Housing: Black HTN+30%UL94 V-0 black, which can withstand high temperatures

Shell: Brass plating Ni&SUS304;
Magnet: NdFeB N45 plating Ni;

Mechanical:

-Contact force:80g±20g at 0.5mm working storke

-Life test:10,000cycle

-Adsorption force test:The female docking adsorption is 400g±20%

Electrical:

-Rated voltage:DC12V;

-Rated voltage:2AMax.

-Contact resistance of spring pin:50milliohm Max.

Environmental performance:

-Operation Temperature:-25℃ to +80℃

-SaltSpray:24H

2Pin Male Female Magnetic Connectors Parameter:

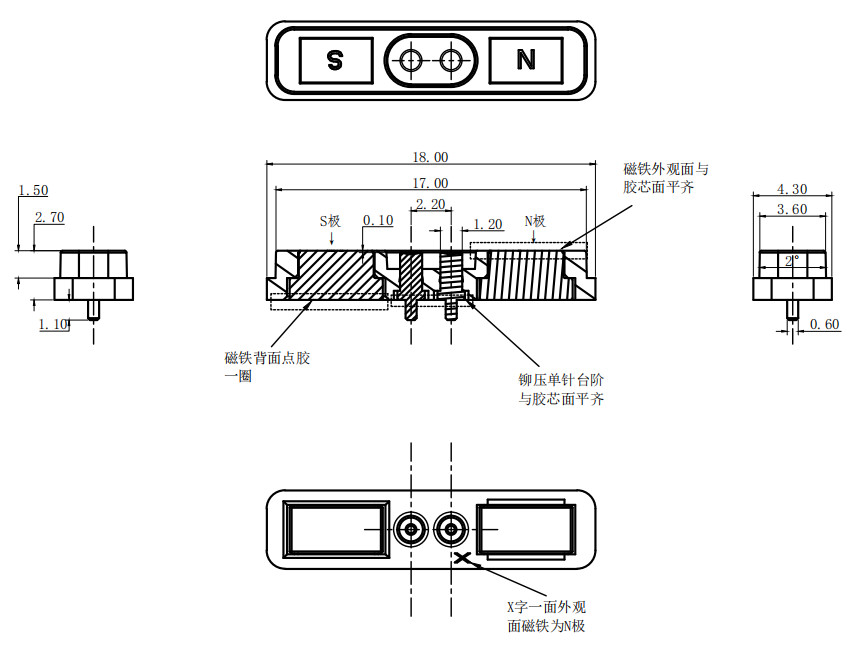

2Pin Male Magnetic Connector Technical Drawing

2Pin Female Magnetic Connector Technical Drawing

Recommended pcb layout

Decompose the view of female magnetic connector

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
