4pin right angle female magnetic connector male magnetic cable connector

-Materil and coating conform to ROHS and REACH standards

Mechanical:

-Contact force:80g±20g at 0.8mm working storke

-Life test:10,000cycle

Electrical:

-Rated voltage:DC5V;Rated voltage:3AMax.

-Contact resistance of spring pin:50milliohm Max.

Environmental performance:

-Operation Temperature:-25℃ to +80℃

SaltSpray:24H

USB2.0: USB/AM Integrated type (with overload and short-circuit protection of 5V 2A)

Inner mold material: PE

Over molding:PVC Black

Cable Tie:Black PVC Metal elliptic cable tie

Wire:OD3.5 4C 2C 22AWG 2C 28AWG B1ack PVC

Magnet Plug: Magnetic Male Plug

4Pin Male Female Magnetic Connectors Parameter:

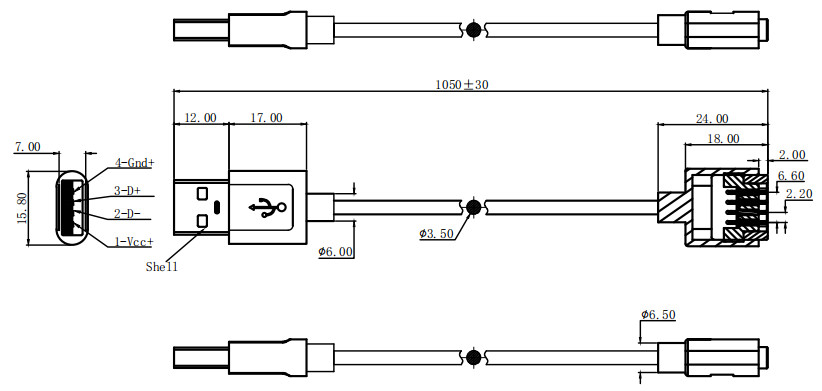

4Pin Magnetic Cable Connector Technical Drawing

4Pin Right Angle Female Magnetic Connector Technical Drawing

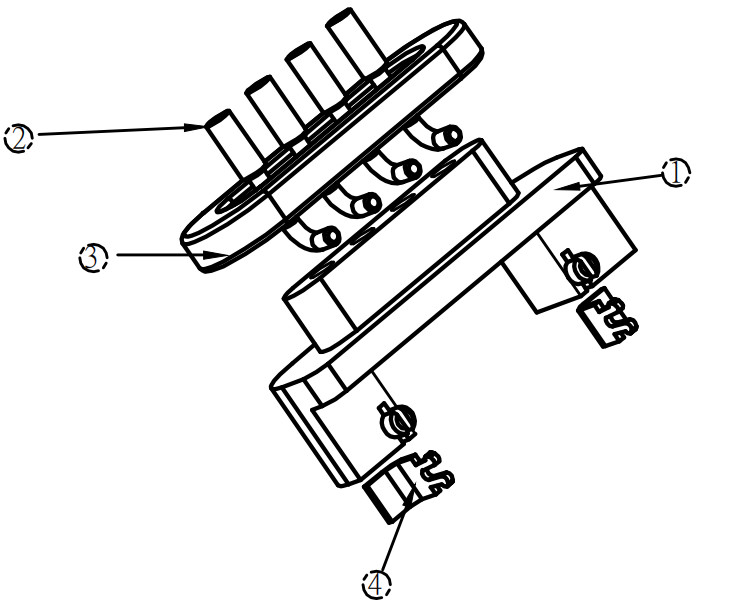

Decompose the view of female magnetic connector

4Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

● Reliability and durability

● Rapid design and delivery

● Reliable and honest partnership

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
