2.54mm pitch male 5pin spring loaded pogo pin magnetic cable connector

-Materil and coating conform to ROHS and REACH standards

Mechanical:

-Contact force:35g±5g at 0.85mm working storke

-Mechanical Life: 10,000 cycles (minimum)

Electrical:

-Rated voltage:DC5V;Rated voltage:1.5AMax.

-Contact Resistance (Spring Pin): ≤50mΩ (milliohms)

USB2.0: USB/AM Integrated type (with overload and short-circuit protection of 5V 2A)

Inner mold material: PE

5Pin Male Magnetic Cable Connectors Parameter:

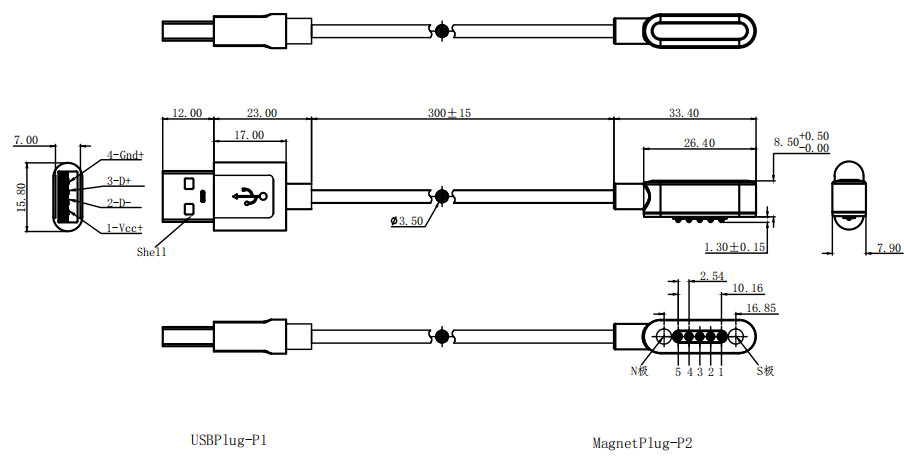

5Pin Magnetic Cable Connector Technical Drawing

5Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products are widely used in various industries due to their convenience, reliability, and ability to prevent damage from accidental tugs. Here are some common applications:

1. Consumer Electronics
●Smartphones & Tablets: Used for charging (e.g., MagSafe for iPhones, magnetic charging adapters).

●Wearables: Smartwatches, wireless earbuds (e.g., Apple Watch charger).

●Laptops & Accessories: Magnetic charging ports (older MacBook MagSafe connectors).

2. Medical Devices
●Wearable Health Monitors: ECG patches, glucose monitors.

●Surgical & Diagnostic Tools: Secure, quick-disconnect power/data connections.

●Hearing Aids: Magnetic charging solutions.

3. Industrial & Automotive
●Automotive Sensors & Diagnostics: Easy-to-connect test equipment.

●Robotics & Drones: Secure power/data transfer with quick-release safety.

●LED Lighting Systems: Modular magnetic power connectors.

4. Marine & Outdoor Equipment
●Waterproof Devices: Magnetic charging for rugged electronics (avoiding port corrosion).

●Diving & Military Gear: Secure connections in harsh environments.

5. IoT & Smart Home Devices
●Smart Locks & Cameras: Tamper-resistant power connections.

●Modular Appliances: Easy-to-attach peripherals (e.g., magnetic kitchen gadgets).

6. Energy & Power Tools
●Battery Packs: Quick-swap magnetic connections for tools & drones.

●Solar Panels: Easy-install magnetic connectors.
