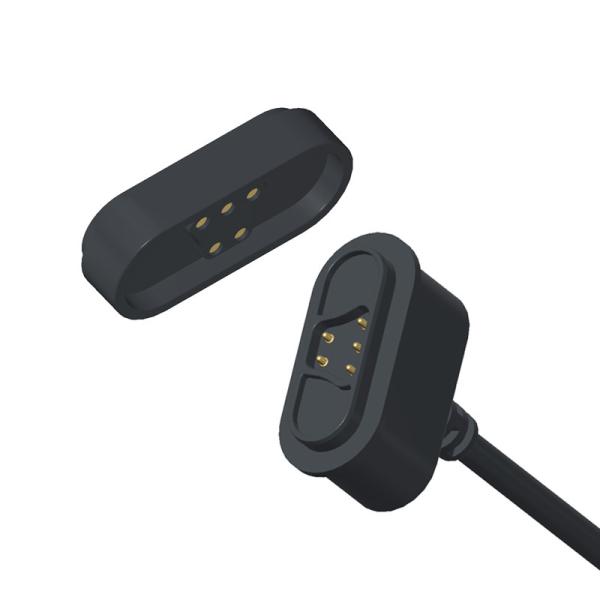

5pin DC plug male magnetic cable connector and female magnetic connector

Magnetic cable connector and female magnetic connector all materials complies RoHS & REACH Compliance.

All the magnetic cable connector passed 100% Short & Open Circuit Testin.

Mechanical:

Pin1/3:

-Contact force:80g±20g at 1. 1mm working storke

-Life test: 10,000 cycles

Pin2/4/5:

-Contact force:80g±20g at 0.8mm working storke

-Life test:10,000 cycles

Electrical:

-Rated voltage:DC 12V ; Rated voltage: 5A Max.

-Contact resistance of spring pin:50 milliohm Max.

Environmental performance:

-Operation Temperature:-25℃to +80℃

-Salt Spray:24H

5Pin Male Magnetic Cable Connectors and Female Magnetic Connector Parameter:

5Pin Male Magnetic Cable Connector Technical Drawing

5Pin Female Magnetic Connector Technical Drawing

Male Magnetic Cable Connector Mnode of Connection

Female Exploded View

Packaging view:

Advantages of Magnetic Connector:

●Humanize design of automatic adsorption connection experience;

●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;

●Life time: up to 100,000-200,000cycle;

●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);

●Fast charging time: 5A-10A magnet connector design withstands large current transmission;

●The appearance of the magnetic connector can be matched according to the design of the customer's application device;

●Product anti-short circuit structure design and foolproof;

●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

1.Specialized Expertise in Magnetic Connectors

●Focused R&D: UPE has dedicated experience in magnetic connectors

●Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs.

2. High Durability & Compliance

●10,000+ Cycles Guaranteed: Their connectors likely undergo rigorous testing to meet your mechanical life demand.

●Certifications: Compliant with UL, or RoHS standards—critical for consumer/medical markets.

3. Competitive Manufacturing

●Cost-Effective Tooling: UPE may offer low MOQs (e.g., 1K–5K units) with competitive pricing for small-to-medium batches.

●Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability.

4. Fast Prototyping & Support

●3D Samples in Days: Rapid prototyping for fit/function checks

●Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68).

How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity Needed,Customized requirements,Technical Specifications)

*Negotiate pricing & terms (bulk discounts may apply).

*Confirm order details (connector type, quantity, customization).

*Make payment (via PayPal, bank transfer, or other secure methods).

*Shipping & Quality Check
*Track the shipment.

*Inspect the product upon arrival to ensure quality.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping

Any question, please send to union@upetech.net
