| Brand Name : | UPE |
| Model Number : | RC-1117-A02-11 |
| Certification : | ISO9002 |
| Price : | $1-$5 |
| Payment Terms : | T/T |
| Supply Ability : | 5KPCS/Day |
| Delivery Time : | 12-15 working days |

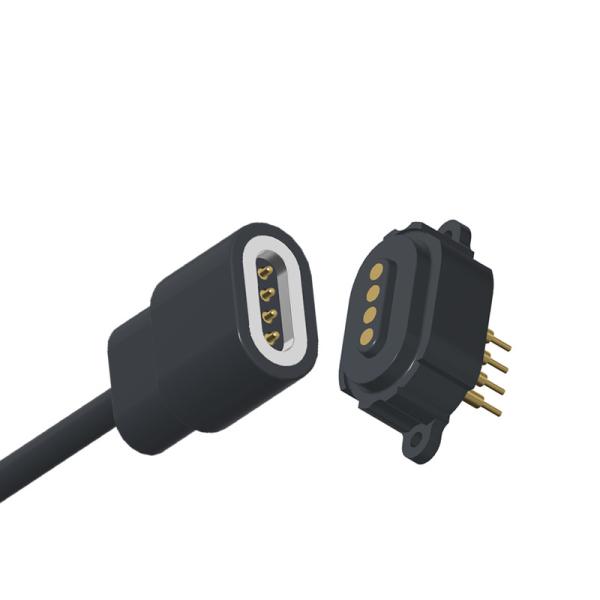

USB 2.0 male female 4pin pogo pin power charger magnetic cable connector
Material and coating conform to ROHS and REACH standards
100% short and open circuit test
Material
Pogo Pin/Turning Parts: Brass with 0.125µm gold plating (for corrosion resistance and conductivity)
Housing: Black HTN (High-Temperature Nylon) plastic with UL94 V-0 flame rating
Magnet: N52-grade neodymium (strongest commercial grade) with Ni-Cu-Ni plating (corrosion protection)
Wire: 3.0mm outer diameter, 4 conductors (2x 24AWG + 2x 28AWG) in black PVC insulation
Cable Tie: Elliptical black PVC tie with metal core
Internal Molding: Transparent polyethylene (PE)
Over molding: PVC Black
Magnet Plug: Magnetic Male Plug
Mechanical:
Contact force: 70g±20g,at 0.8mm working storke.
Life test: Minimum 10,000 mating cycles
Adsorption force test:600±20% grams female-side adsorption force
Electrical:
Ratedv Voltage:12 V.
Ratedv Current:2.0 A max
Contact resistance of spring pin: ≤50mΩ per pogo pin
Environmental performance:
Operation Temperature: -25℃to +80℃
SaltSpray: 24-hour salt spray test compliant
4Pin Magnetic Cable Connectors Parameter:
Name | 4Pin Magnetic Cable Connector |
Type | DIP |
Pin | 4pin or customized |
Pitch | 3.0mm |
Cable | PVC |
Cable length | 1000m |
Color | Black |
Pogo pin/Turning parts | Brass |
Housing | Black HTN |
Magnet | NdFeB N52 Plating Ni |
Spring force | 70g±20g,at 0.8mm working storke. |
Mechanical life | 10000 cycle Min.. |
Current | 2.0A |
Voltage | DC 12V |
Contact resistance | 50mΩ Max (PIN). |
High voltage test | AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC. |
Salt spray test | 24H |
Certification | ROHS or REACH compliant product |
Test | 100% open and short test |
4Pin Male Magnetic Cable Connector Technical Drawing
4Pin Female Magnetic Connector Technical Drawing
Mode of connection
Female Magnetic Connector Exploded View
Packaging view:
Magnetic connector products application:
1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection
2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment
3.Aviation ,aerospace electronic,military communication
4.Automotive,car navigation,test and measurement equipment
5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)
Why UPE shall be your partner?
● Reliability and durability
● Rapid design and delivery
● Reliable and honest partnership
How to place the magnetic cable connector order
* Identify Your Requirements(Type of Connector,Quantity
Needed,Customized requirements,Technical Specifications)
*Negotiate pricing & terms (bulk discounts may apply).
*Confirm order details (connector type, quantity, customization).
*Make payment (via PayPal, bank transfer, or other secure methods).
*Shipping & Quality Check
*Track the shipment.
*Inspect the product upon arrival to ensure quality.
Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
