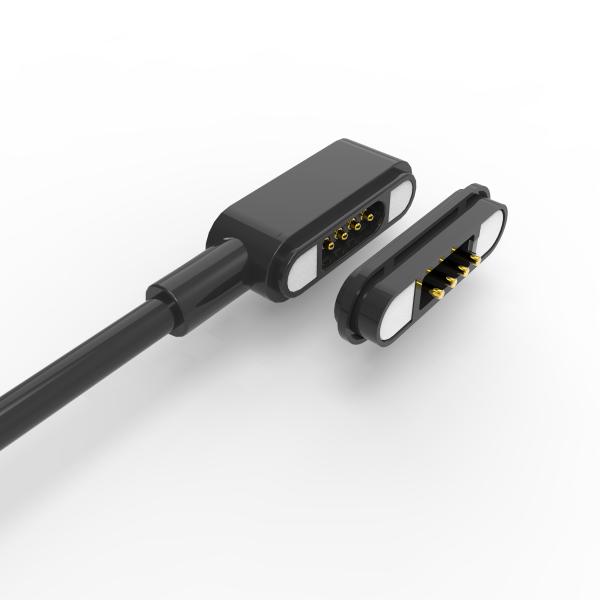

TPE cable 4pin pogo pin magnetic USB cable connector for burglar alarm

...Materials:
The metal needle part is plated with gold on the brass surface;
The hard plastic material is made of HTN+30% UL94 V-0 black, which can withstand high temperatures.
The magnet adopts high-performance permanent magnet neodymium iron boron;
Black TPE 80A outer mold of the joint;
Wire OD3.5mm 4C (red and black: 65*0.08, white and green: 16*0.08,tin-plated copper wire)Covered with black TPE

USB: stainless steel shell USB2.0.

...Mechanical properties:
Spring force: 80g ± 20g at 1.0 working height,
Service life: 50,000 times minimum.

...Electrical properties:
Reference voltage: 12 V,
Continuous working current:3.0A;
Maximum momentary current:4.0A maximum;
Contact static impedance of the needle: 50mΩ Max (PIN).
The product adopts environmental protection materials, ROHS, REACH;
The adhesive force of the magnetic male and female docking is more than 550G.

Product Introduction and Dxplaination:
Product anti-short-circuit structure design;
Polarity and electrical direction are clearly identified.

2Pin Magnetic Cable Connectors Parameter:

4Pin Male Magnetic Cable Connector Drawing Size:

4Pin Female Magnetic Connector Drawing Size:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
