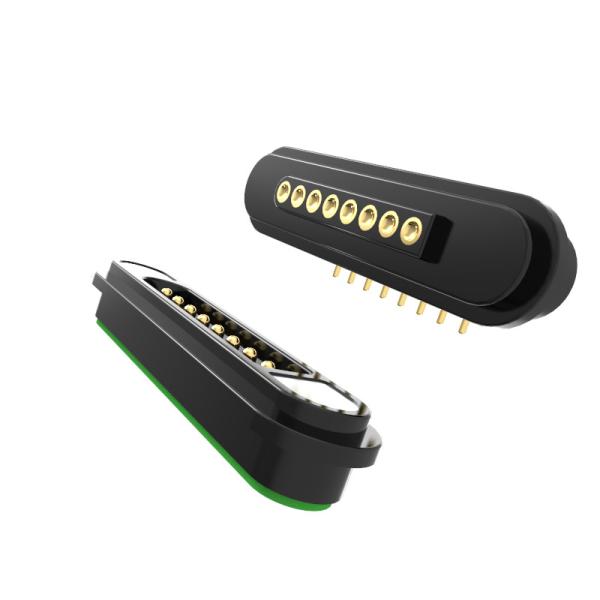

Right angle 8pin male female magnetic pogo pin chariging spring loaded connector,the female pin is concave.

1. Materials & Construction

Metal Needle (Contact Pin)

Gold-plated brass (for corrosion resistance & conductivity).

Plastic Housing:

HTN (High-Temperature Nylon) + 30% filler.

UL94 V-0 rated (flame-retardant, self-extinguishing).

Black color, capable of withstanding high temperatures.

Magnet:

Neodymium Iron Boron (NdFeB) permanent magnet (high magnetic strength).

Optional epoxy resin coating for corrosion resistance (passes 48-hour salt spray test).

2. Mechanical Properties

Spring Force: 80g ± 20g at 1.0 working height (ensures stable contact pressure).

Service Life: ≥50,000 mating cycles

Magnetic Attraction Force: ≥450g between male & female parts (strong hold for secure docking).

3. Electrical Properties

Rated Voltage: 12V.

Continuous Working Current: 5.0A.

Contact Resistance (Pin): ≤50mΩ (low impedance for efficient power transfer).

High-Voltage Test:

AC 1000V, 0.5mA, 3 sec

DC 1000V, 0.5mA, 3 sec

Safety & Compliance

Anti-Short-Circuit Design: Prevents accidental electrical shorts.

Polarity & Direction Marking: Clear identification for correct mating.

Environmental Standards:

ROHS & REACH compliant (lead-free & hazardous substance-free)

Product application explaination(not limited to the following):

1. The PCB board can be soldered with a plug-in;

2. Mold molding and injection molding;

8pin magnetic connectors parameter:

8pin male magnetic connectors:

8pin female magnetic connectors:

Recommended pcb layout:

Layout tolerance:±0.05mm
