3A 3pin male female DIP pogo pin magnetic connector with THN plastic

...Product application explaination (not limited to the following):
1. The PCB board can be soldered with a plug-in;
2. After soldering, the board can be molded and coated;
3. The PCB board can be connected with a terminal;
4. The mold can be molding and injection molding;
5. The wire can be directly soldered.

We can offer 2D , 3D development for our customers, and can provide different kinds of testing for our customer to make sure the quality for our customers for pogo pin , pogo pin connector , magnetic pogo pin charging connector with USB and cable.

In order to make sure the magnetic connector to fulfill the application, we will have testing for the products before shippment to make sure the product quality to our customers

* The product adopts environmental protection materials, ROHS,REACH;
* The attraction force of the magnetic male and female docking is more than 600G.
* Magnetic power connector is anti-short-circuit structure design;
* Polarity and electrical direction are clearly identified.
* (The magnet can be coated with epoxy resin, and the salt spray test can pass 48hours.)
* The pin feet are fixed on the PCB board, and the pin spacing size is stable.

...Product application explaination (not limited to the following):
1. The PCBboard can be soldered with a plug-in;
2. Mold molding and injection molding;

3pin magnetic connectors parameter:

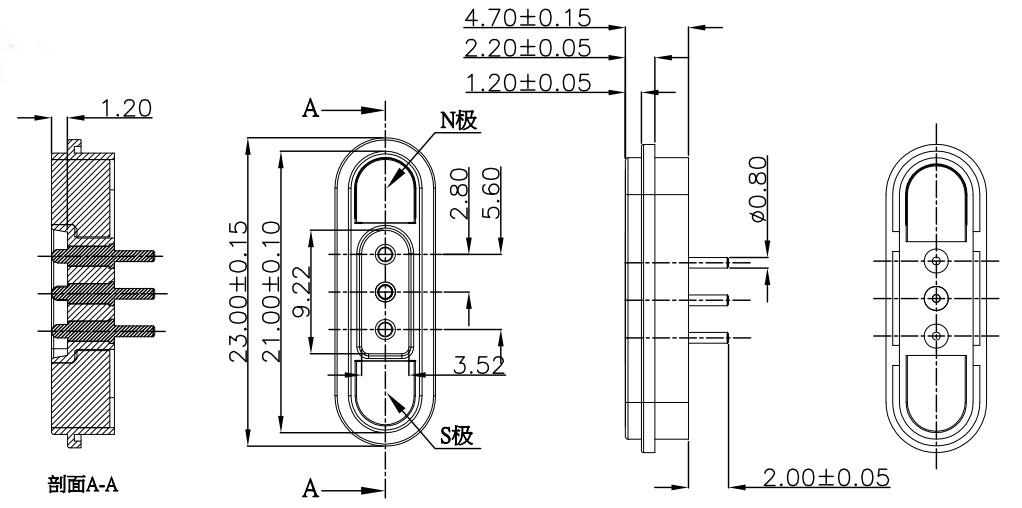

3pin male DIP magnetic connectors:

3pin female DIP magnetic connectors:

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards

Magnetic connectors application:

How to place the order
* You send us drawing or sample

* Our professional engineering team conducts the assessment

* You confrim the drawing and we make the sample to send you

* You test the sample and approved,then place an order and pay 50% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to you with DHL, TNT,UPS,Fedex

We can provide design service

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to union@upetech.net

Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components.

As a leading company in China's connector industry,

we focus on delivering competitive solutions, including pogo pin connectors, magnetic connectors and industrial waterproof connectors.

Our products are widely used in various industries, such as:

Telecommunications,Medical Devices,Aerospace&Aviation,Automotive,Wireless Equipment,Wearable Technology,Industrial Testing Equipment

 (e.g., smartphones, TVs, tablets, gaming consoles, learning devices, etc.)

Computer Peripherals With a strong global presence, our products are primarily exported to Europe, the United States, Canada, and developed regions across Asia.

UPE is equipped with advanced technology and modern production techniques. We are ISO9001 and ISO14001 certified,

ensuring that all our products comply with the EU RoHS environmental standards.

To guarantee superior quality, we source key raw materials from Taiwan and Japan. With years of production expertise,

a streamlined management system, and a team of skilled,

experienced professionals, We deliver high-performance electronic components at competitive prices.

Our Advantages:

✔ Customized Solutions – Our expert engineering team specializes in POGO PIN connectors, magnetic charging connectors, and industrial waterproof connectors, offering fast design support and short development cycles.
✔ Rapid Prototyping – Quick sample turnaround to meet urgent demands.
✔ Stable Quality & Reliability – Consistent performance for secure and dependable products.
✔ Cost-Effective & Excellent Service – High-value solutions tailored to customer needs.

We are committed to providing safe, trustworthy, and high-quality products that exceed customer expectations.

Quality, integrity, and superior service are the core principles we steadfastly uphold. We sincerely look forward to collaborating with more partners to grow and succeed together
