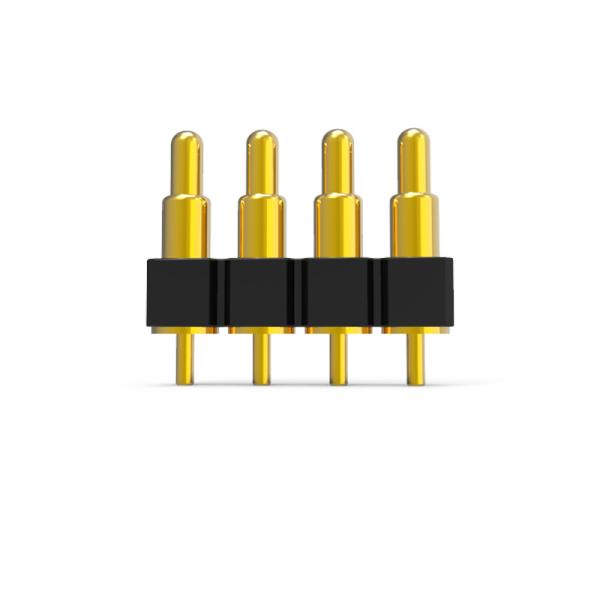

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care

    Ask Lasest Price
    Brand Name : UPE
    Model Number : UPDXXX-AXX-XXXX SERIES
    Certification : ISO9001
    Price : $0.8-$3
    Payment Terms : T/T
    Supply Ability : 5KPCS/Day
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care

    Single Row 2.54mm Pitch DIP 4pin Spring Loaded Connector For Health Care

    Single row2.54mm pitch DIP 4pin spring loaded connector for health care. UPE also provide professional POGO PIN CONNECTOR customization service.


    Advantages of UPE Pogo Pin Connector


    Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:

    Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.

    Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.

    Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.

    Ease of Use: They are user-friendly, with straightforward installation and maintenance.

    Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable


    Our Advantage and your choice:


    UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.


    UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.

    Pogo Pin Life test up to 1000,000 cycles.

    All products can pass HF, RoHS REACH standard.

    100% electrical test provided report before delivery the goods.

    Custom of various shapes is available, small structure and high current.

    Why do customers choose UPE?


    1. Professional customization service


    2. Fast sample production capability


    3. Strict quality control system


    4. Processing with imported components


    5. High-precision test equipment


    6. Reasonable cost control procedures


    Pogo Pin Connector consists of 6 parts:Plunger,Barrel,Spring,Ceramic beads,housing,Cap

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care


    2.54mm pitch standard single row 2pin-20pin Pogo pin connector with DIP

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care

    Spring Loaded Connector Parameter List

    Insulator

    Black plastics(265) UL94 V-0

    Plunger

    Brass 5u” Au over 60~100u” Ni

    Barrel

    Brass 5u” Au over 60~100u” Ni

    Spring

    SUS surface treatment

    Spring force:

    80g+/-20g at working stroke

    Life test

    100,000 cycles

    Rated current

    3A Max.

    Voltage

    DC 12V

    Contact resistance

    50 milliohm Max

    Salt spray test

    48H

    Certification

    ROHS or REACH compliant product

    Test

    100% open and short test


    2.54mm pitch standard PCB solder pad layout

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care


    Standard 2.54mm Pitch Pogo Pin Connector for customers reference:

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care


    Pogo Pin Connector Application Field:

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care

    Pakaging & shipping

    Single Row 4 Pin Pogo Connector Customized Spring Loaded Connectors 2.54mm Pitch For Health Care


    Any question, please send to union@upetech.net
