    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    Stainless Steel Brass Spring PCB Loaded Header DIP pogo pin with gold Plating.
    A Pogo Pin is a type of electrical connector used to establish a temporary connection between two circuits. It consists of a spring-loaded plunger inside a barrel, allowing it to compress and maintain reliable contact when pressed against a conductive surface.
    Advantages of DIP pogo pin structure: The bottom tail plug can be positioned, making it less likely to shift during soldering and facilitating PCB soldering
    According to customer different requirements, we have 8 types Exterior Structure POGO PIN for customers choose, for the standard POGO PIN, UPE designed the total height of the product is 2.8mm ~ 11.0mm( the total height is not include DIP pogo pin's tail length).
    The following are 8 types structures for your reference and selection:
    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating
    SMT: Good stability, the bottom of the Barrel is a flat bottom design, which is easy to solder on the PCB board
    DIP: There is a positioning pin at the tail of the Barrel. When welding with the PCB, no deviation will occur, good positioning effect and firm
    welding.
    Double Head: The design of the double head Pogo pin provides designers with more flexibility in the bi-directional board-to-board
    connection ,the double head pin does not need to be welded.
    Right Angle: The tail of the Pogo Pin is bent, providing designers with more choices in the use of space , the tail can also be soldered with wire.
    Soler Cup: Suitable for cable product, easy to weld with wire

    Screw-type: The products with special specifications can meet the different needs of customers, and can be customized according to the needs

    of customers.

    One-piece type: It can pass large currents, be customized according to customer requirements, and meet different customer needs.

    Spherical ball type: Lateral force is available, and it can be customized according to customer requirements to meet different customer needs.

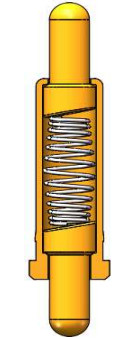

    UPE Pogo Pin Internal Structure according to customer requirements to match suitable one

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    A.Structure description:Plunger for oblique bevel

    Structural advantages:Conventional use, impedance stability.long life
    Application method:SMT & DIP Regular use
    Structure use precautions:Cannot exceed the limit working stroke

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    B.Structure description:Plunger for drilled

    Structural advantages:
    In a limited space, the plunger can perform maximum compression.
    Application method:SMT & DIP Regular use
    Structure use precautions:Can not exceed the limit stroke and excessive current use

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    C.Structure description:Plunger for flat

    Structural advantages:Turning is easy to machine, for space structure based on A&B
    Application method:SMT & DIP Regular use
    Structure use precautions:Can not exceed the limit stroke and excessive current use

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    D.Structure description: Barrel inside added insulating beads

    Structural advantages: The impedance is more stable, suitable for current use above 10A
    Application method:SMT & DIP Regular use
    Structure use precautions: Cannot exceed the limit working stroke

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    E.Structure description: Both sides of the plunger can be compressed

    Structural advantages: Save space of structure,long distance, large compression board to board contact
    Application method: Board to board docking
    Structure use precautions: Cannot exceed the limit working stroke

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    F.Structure description: Four-piece combination

    Structural advantages: High press smoothness, plunger deflection small, waterproof and dustproof. The working life is relatively longer. Overpressure will not cause product failure.
    Application method: High current, high performance, waterproof and dustproof

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    G.Structure description: Intermediate shaft compression

    Structural advantages: Simple structure, can pass high current.
    Application method: Weldinng high current use
    Structure use precautions: Cannot exceed the limit working stroke

    Stainless Steel / Brass Spring Loaded Header Pins DIP Spring Loaded PCB Test Pins With Gold Plating

    H.Structure description: Ball compression contact

    Structural advantages: Simple structure and easy processing
    Application method: Small working stroke use
    Structure use precautions:
    Cannot exceed the limit working stroke

    Pogo Pin application areas are:

    1.Industrial equipment, three-proof machine, communication equipment, medical equipment, handheld terminal equipment;
    2.Smart wearable devices, smart education, smart positioning devices, smart toy
    3.Consumer electronics, tablet computers, shared charging, TWS Bluetooth headsets, electronic cigarettes

    Why do customers choose UPE?
    1. Pogo Pin professional customization service
    Different products and solutions can be designed according to different customer needs

    2. Fast sample production capability
    Standard product 2-3 days sample, new custom sample 7 working days, mold opening product 12 days

    3. Strict quality control system
    The concept of quality first runs through the entire production and inspection process, and strictly controls each process to ensure the quality of customer satisfaction.

    4. Processing with imported components
    A small number of needle shafts are machined from imported precision lathes, and most of the needle shafts are made of imported cold stamping for higher stability.

    5. High-precision test equipment
    Provide accurate and precise testing to continuously improve product quality

    6. Reasonable cost control procedures
    Save costs, eliminate waste, optimize processes, and highlight cost competitiveness

    7. Product environmental standards
    The product meets the EU ROHS standard and meets halogen


    Spring-Loaded Pogo Pin Connector parameter performance

    Name of Parts

    Parameter performance table

    Barrel Materia

    Brass

    Beryllium copper

    Phosphor Bronze

    Plunger Material

    Brass

    Beryllium copper

    Phosphor Bronze

    Stainless steel

    Spring options

    Stainle

    Music wire


    Plating requirements


    Gold-Au


    Silver-Ag


    Palladium-Nickel

    (Pd-Ni)

    Rated Current

    1A, 2A, 3A ,5A,15A or 30A (different structures)

    Rated Voltage

    DC 12V 24V

    Contact Resistance

    30mΩ 50mΩ Max. (stillness)

    Life test

    50,000 cycles Min. 1000,000 cycles Max

    Reflow Temp.

    265°, 4~5sec

    POGO PIN Reliability Test

    Retention Force

    At rated cycling of 500±50 per hour,50,000 cycles minimum


    Humidity

    EIA-364-31,Test method II, Condition A Subject mated connectors to relative humidity of 90% to 95%RH and a temperature of 40 ± 2 relative humidity for 96 hour.


    Resistance to Solder Heat


    EIA-364-56,Procedure 5,Level 2 265+10/-0for 30 to 35 seconds


    Salt Spray

    EIA-364-26,Test condition B Subject mated connectors to 5±1% salt-solution

    concentration, 35+1/-2 for 48 hours.

    Spring force test

    Normal Force Test Procedure,100g±20g at working height

    Temperature Life

    EIA-364-17,Test method A,condition 4,Test time condition A Subject mated

    connectors to 85± 2 for 96 hours.

    Solderability

    EIA-364-52 Dip into the 265±5, 60/40±5% Sn/pb solder for 4.0~5.0 second

    Contact Resistance

    EIA-364-23 Measure the contact resistance with a test current of 100 mA maximum and 20 mV voltage maximum


    Testing equipment:

    We have an independent laboratory and equipped with relevant experimental equipment, such as

    Insertion force testing machine, Two-dimensional projector, Thickness meter, Automatic inspection machine, Insulation Resistance Tester

    Metallographic sample polishing machine, Salt spray tester, Current temperature rise tester, Load stroke curve instrument, Automatic inspection machine, ROHS tester, Roughness tester,Elastic impedance tester, Life tester, etc.
